LED Area Light
1.Using the imported LED as the lighting source,all of our lamps are energy saving and environment protection , high light e?ciency,low light-declining and long lifespan.
2.Unique matrix heat dissipation design,360°ventilation,hollow air convection and maximum heat emission prolong the lamp life.
3.Adopt new patent double seal design, ensure no water is allowed in any environment, so our lights can be reliability used in harsh environment .
4.Clear parts are pressed with high quality special materials,with good impact resistance, high light transmittance and anti-glare.
- Specification
- Optical Parameters

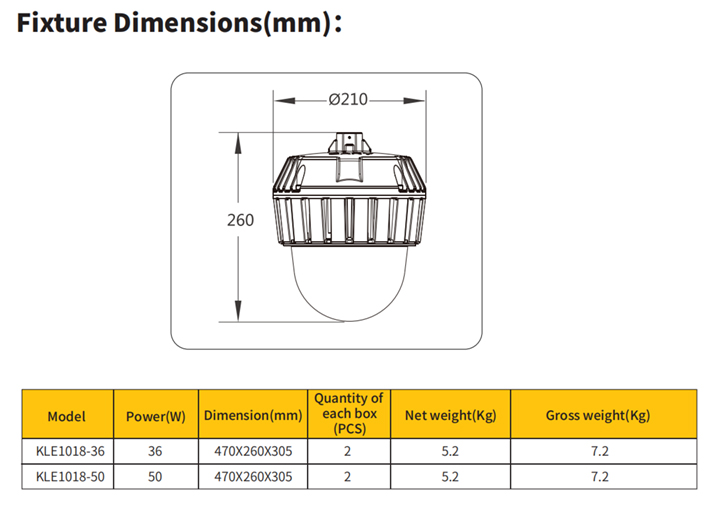

- Dimension

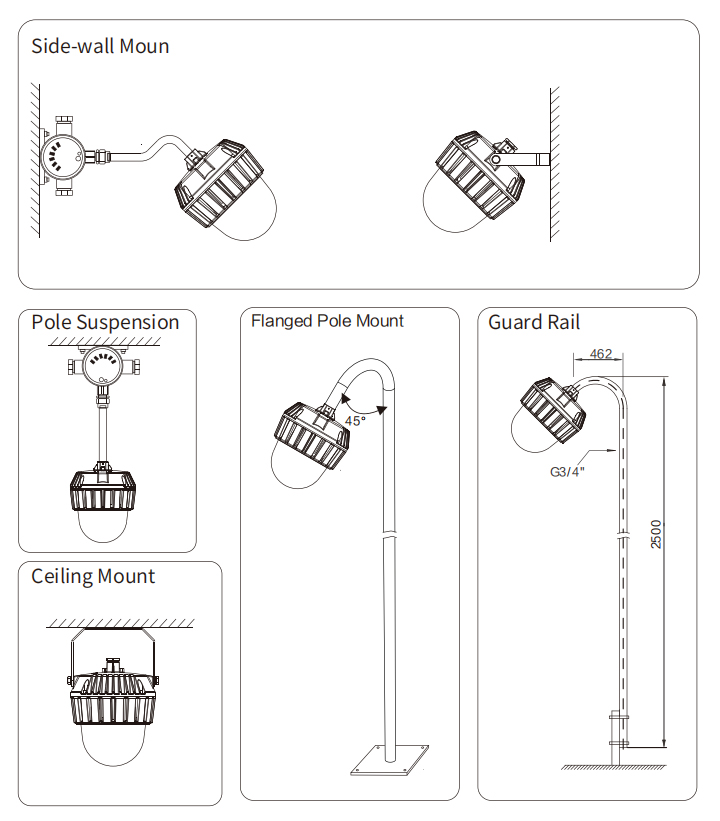

- Installation
- Packing
|
Item |
Technical Data |
Unit |
|
Power Rating |
36/50 |
W |
|
Voltage Rating |
100-277 |
VAC |
|
Frequency |
50-60 |
Hz |
|
Power Factor |
>0.95 |
- |
|
Surge protection |
5000 |
V |
|
Light Source |
LED |
- |
|
Lifespan |
50000 |
h |
|
Light E?ciency |
120 |
lm/W |
|
CCT |
4000-6000 |
K |
|
CRI |
>70 |
- |
|
Lamp Type |
I |
- |
|
Lamp Body |
High quality aluminum |
- |
|
Color |
Grey |
- |
|
Size of Input Cable |
Φ6～8mm，3×1.0mm2 |
- |
|
IP Rating |
IP65 |
- |
|
Corrosion -Proof grade |
WF2 |
- |
|
Working temperature |
-40～50 |
℃ |
|
Storage temperature |
-40～50 |
℃ |
|
Size |
Φ210*H260 |
mm |
|
Weight |
3.0/3.2 |
Kg |
|
Certi?cate |
CE |
- |
